Auto Trans Oil Pan

Transmission Cooling Pan

Transmission Cooling Pan; 6-1/8 in. Pan Depth; 4-1/4 in. Tube Depth; 1/8 NPT Temp Bung Size;

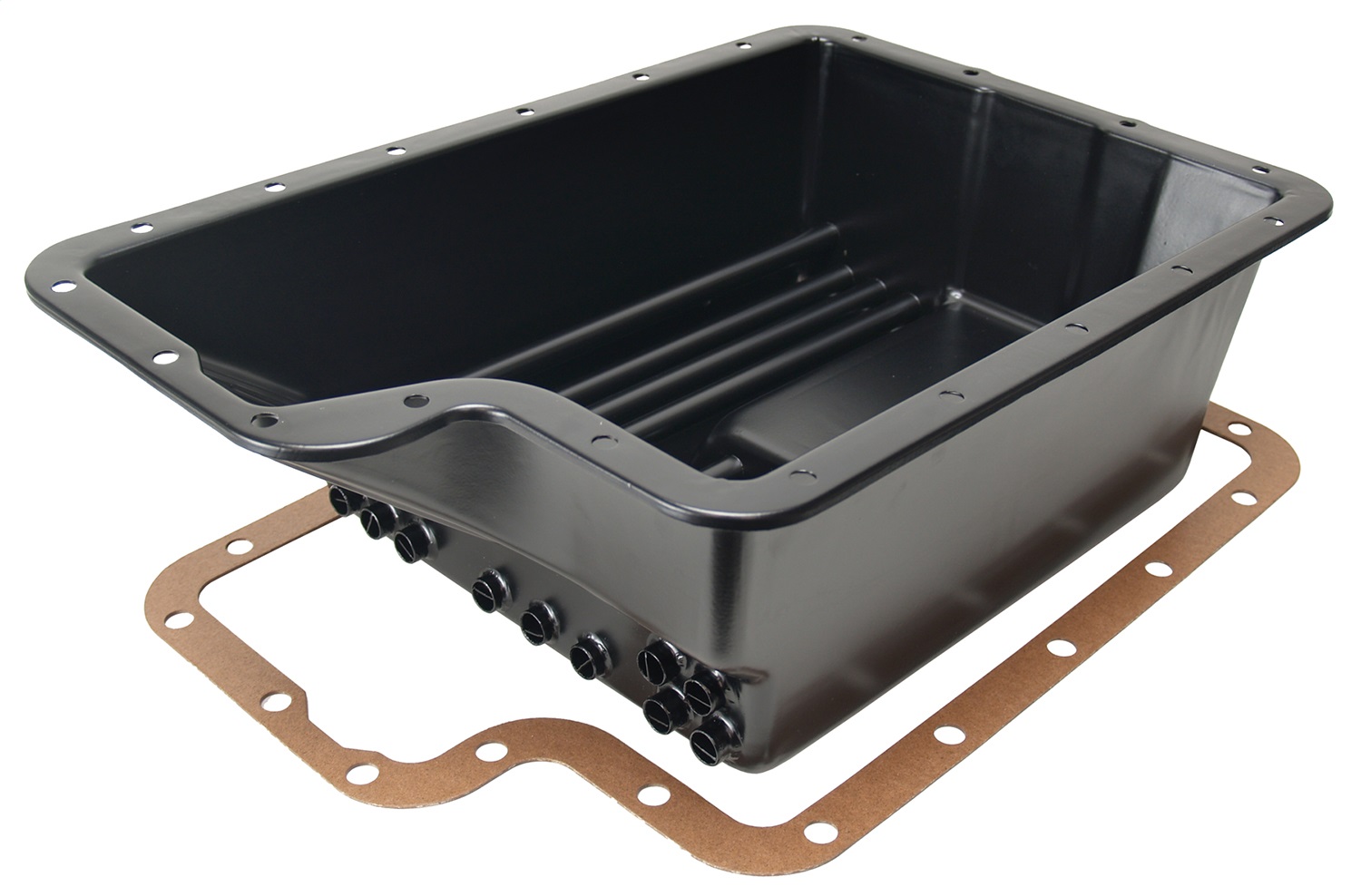

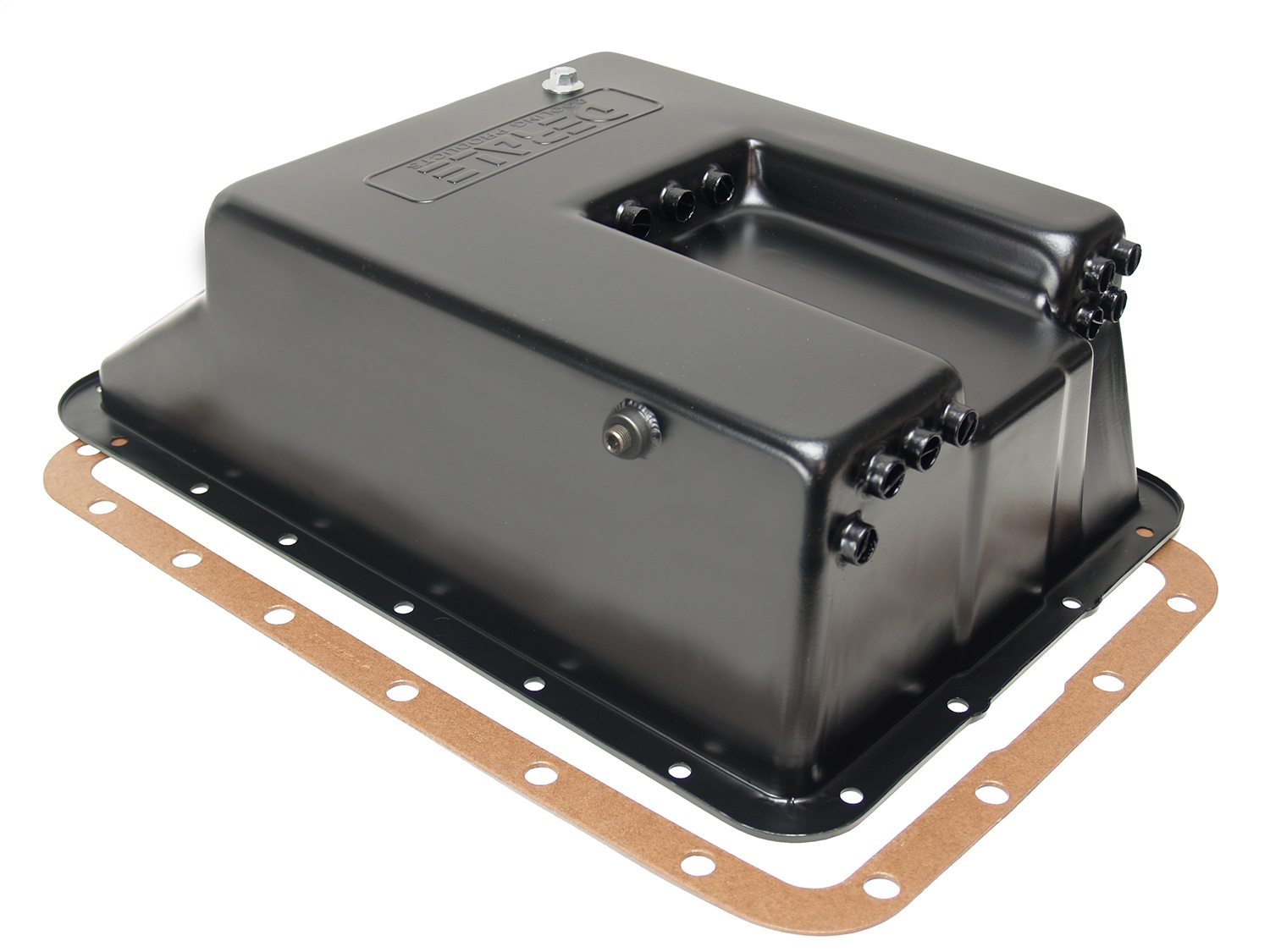

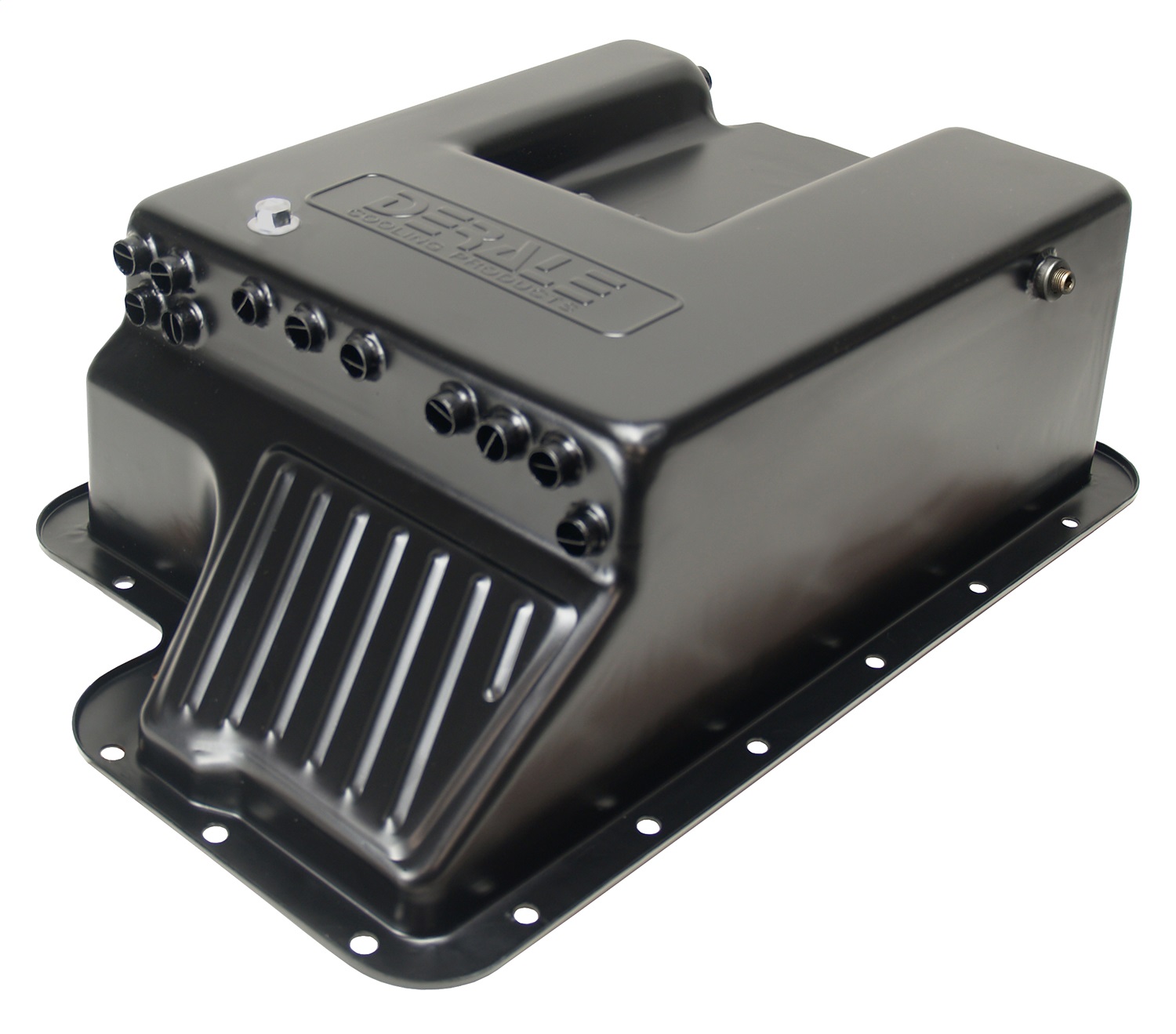

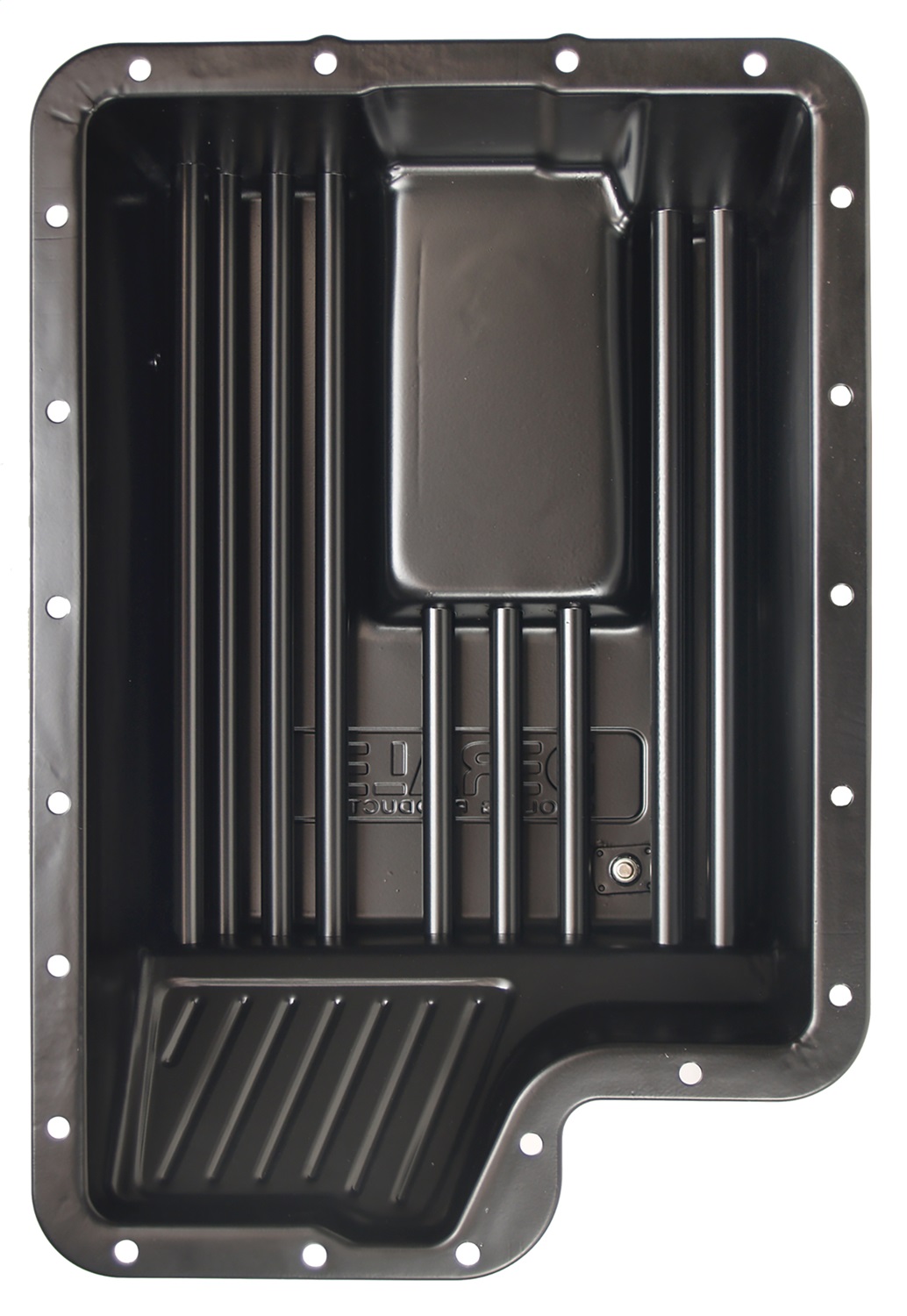

Derale's Transmission Cooling Pan #14208 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. Designed for Ford's E4OD, 4R100 and later 5R110 & 5R110W heavy duty transmissions, this pan features brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8 in. NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8 in. NPT temperature sender plug.

Derale Performance
